SY1-23-0.5 Permanent Magnet Variable Frequency Self-Priming Booster Pump

The Permanent Magnet Frequency Conversion Self-Priming Booster Pump is currently a "versatile" high-end equipment in the field of fluid transportation.
It perfectly combines permanent magnet synchronous motors, frequency conversion control technology, and self-priming pump structure, solving the pain points of traditional water pumps such as high energy consumption, high noise, unstable water pressure, and the need for manual priming. Whether for whole-house pressurization in homes or specific industrial applications, it provides an efficient and quiet solution.

Core Technology and Working Principle
The core of this pump lies in the integration of three cutting-edge technologies:
Permanent Magnet Synchronous Motor (High-Efficiency Power Source)
Principle: Uses rare earth permanent magnets as the rotor magnetic field, eliminating the need for excitation current.
Advantages: Compared to traditional asynchronous motors, it has higher efficiency (up to IE4/IE5 ultra-high efficiency levels), smaller size, and lighter weight. It's like a "turbocharged engine" for water pumps, providing powerful and energy-efficient performance.
Frequency Vector Control (Intelligent Brain)
Principle: Built-in intelligent chip and pressure sensor monitor pipeline pressure in real time.

Advantages:
Constant pressure water supply: Whether you're using one faucet or multiple faucets simultaneously, it automatically adjusts the speed to maintain constant water pressure, completely solving the "hot and cold" problem during showering.
Soft start: Avoids the current surge during traditional motor startup, protecting appliances and the power grid.
Self-priming function (Automatic water priming)
Principle: The pump body has a gas-liquid separation chamber or a special recirculation structure.
Advantages: No manual water priming is required. After the initial water filling during installation, even if the inlet pipe is empty, it can automatically expel the air and draw up the water. Its self-priming height can usually reach 8-9 meters, far exceeding that of ordinary self-priming pumps.

Main Features
Extremely quiet operation: Using a permanent magnet brushless motor and an optimized hydraulic model, the operating noise is extremely low (usually < 45 decibels), as quiet as a library, ensuring undisturbed sleep at night.
Super energy-saving: The permanent magnet motor itself is highly efficient, and coupled with frequency conversion technology for "on-demand water supply," the overall energy saving effect can reach 30%-50%. Dry-running protection: The intelligent system can detect a lack of water, automatically stop operation and sound an alarm, preventing motor burnout and protecting equipment safety.
Suitable for both hot and cold water: Many models use high-temperature resistant designs and materials, capable of withstanding high-temperature media of 90℃-110℃, suitable for solar water heaters, underfloor heating circulation, and other applications.
Compact size: Due to the high efficiency of the motor, the volume is much smaller than traditional pumps at the same power, allowing for more flexible installation.

Typical Application Scenarios
Whole-house water pressure boosting: Boosting the main water supply in high-rise buildings and villas, solving the problem of low water pressure on the top floor.
Water heater companion: Solving the problem of gas water heaters failing to ignite or having unstable water temperature due to insufficient water pressure.
Solar water heating: Utilizing its high suction lift and high-temperature resistance, it easily supplies water to rooftop solar water heaters.
Industrial and agricultural applications: Water supply for precision cleaning equipment, agricultural irrigation, water treatment circulation systems, and other applications requiring high water quality and pressure.

Core Parameter Reference
Parameter Item Common Range Description
Motor Type Permanent Magnet Synchronous Motor (PMSM) Look for the words "permanent magnet" and "variable frequency".
Rated Power 200W - 1500W  Household use generally selects 300W-550W; villas select 750W or more.

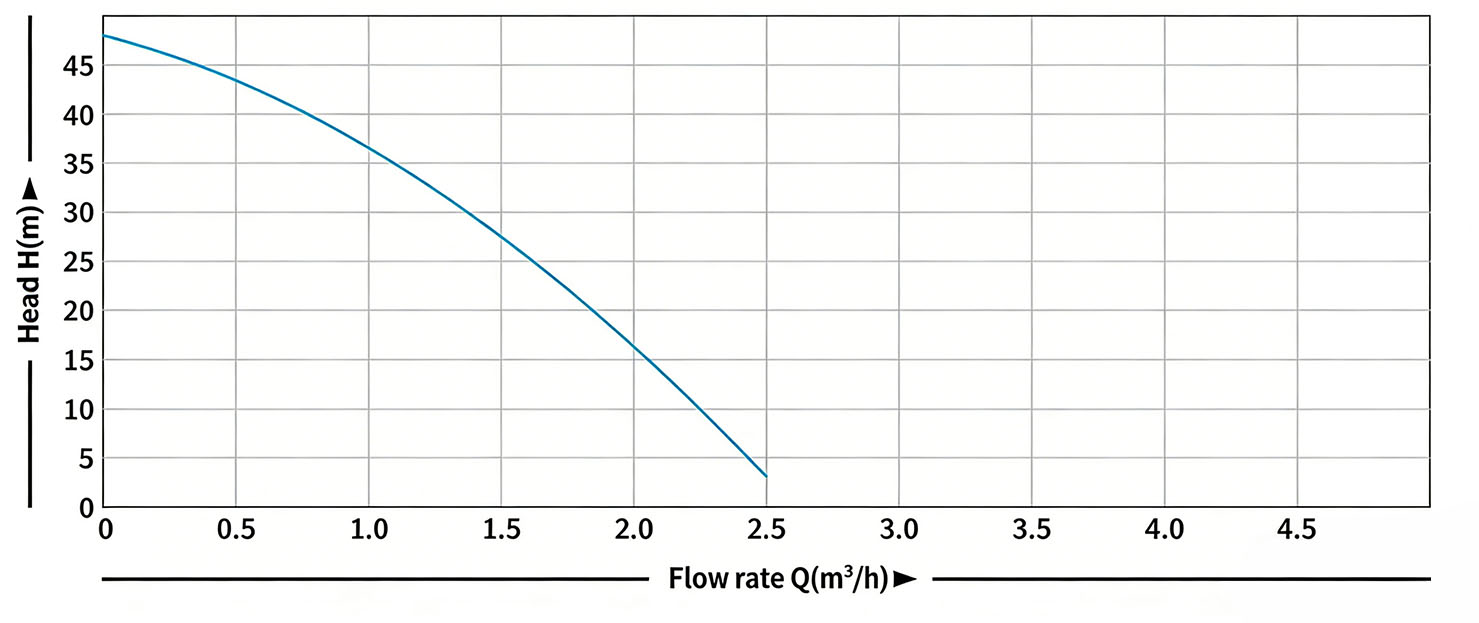

Maximum Head 30 meters - 60 meters Determines how high the water can be pumped.
Self-priming Height 8 meters - 9 meters Determines the ability to draw water from a well or pool.
Noise Level 45 dB(A) The lower the better.

Purchasing and Usage Suggestions
Look for "true" variable frequency:
Some products on the market are only "fixed-frequency motors + speed reduction," not true variable-frequency pumps that automatically adjust according to water pressure. A true permanent magnet variable-frequency pump has low speed and low noise at low water flow, and high speed and high noise at high water flow.
Check the materials:
For parts that come into contact with water (pump head, impeller), it is recommended to choose 304 stainless steel or cast iron (check the anti-rust process) to ensure water quality safety and durability. Frost Protection Tip:
Although the pump body is robust, in areas where winter temperatures drop below 0℃, if the pump is not used for an extended period, be sure to drain the water from the pump body to prevent freezing and cracking of the pump casing.

Filter Installation:
Install a filter screen at the water inlet to prevent sand, leaves, and other impurities from entering the pump body and damaging the impeller or blocking the flow channel.
If you are looking for a quiet, energy-efficient, and stable water pressure experience, and need to pump water from a low-level water tank or well, the permanent magnet variable frequency self-priming booster pump is currently the most powerful and intelligent option on the market.
