Smart Variable Frequency Centrifugal Booster Pump

The intelligent variable-frequency centrifugal booster pump is a highly efficient pressurization device used in modern building, industrial, and domestic water supply systems. It combines the mature hydraulic design of centrifugal pumps with intelligent variable-frequency control technology, resulting in smooth water flow, energy efficiency, and reliable operation. It solves the problems of high noise, high energy consumption, and significant pressure fluctuations associated with traditional pumps. It's like upgrading a "traditional mechanical pump" to a "smart fluid management center," excelling in constant pressure water supply, energy saving, noise reduction, and remote control.

Core Technology and Working Principle

The advantages of the intelligent variable-frequency centrifugal booster pump mainly stem from three key technologies:

Centrifugal Pump Hydraulic Core (High-Efficiency Power)

Principle:  Centrifugal force generated by a high-speed rotating impeller draws water into the pump inlet and expels it at high speed from the outlet, achieving pressurized delivery.

Advantages: Large flow rate and stable pressure, particularly suitable for multi-point water supply or large-flow continuous water supply scenarios. Centrifugal pumps also have a simple structure, are easy to maintain, and have a long lifespan.

Intelligent Variable-Frequency Control (Smart Brain)

Principle: Built-in variable frequency drive (VFD) and pressure/flow sensors monitor system requirements in real time.

Operating Mode: Automatically adjusts pump speed to match water demand, achieving energy-efficient constant pressure.

Low flow demand: Low-speed operation, energy-saving and quiet.

High flow demand: High-speed operation, ensuring sufficient water pressure.

Constant pressure water supply: Regardless of pipeline pressure fluctuations, the outlet pressure remains stable.

Intelligent Protection and Silent Design

Variable-frequency control avoids frequent starts and stops, reducing mechanical shock and noise.

Combined with excellent vibration damping and a sealed pump body design, the operating noise is low (usually below 45 decibels), suitable for residential or office environments.

Built-in protection functions: Dry-running protection, overload protection, overheating protection, etc., extend equipment life.

Main Features

Energy-efficient: Adjusts pump speed according to water demand, consuming 20%-40% less energy than traditional fixed-speed pumps.

Stable constant pressure: In multi-point water supply systems, the pressure at each outlet is uniform, providing comfortable water flow.

Smooth operation: The centrifugal pump structure combined with variable-frequency control results in low vibration and a long lifespan.

Flexible installation: Can be used as a single pump or in parallel with multiple pumps, adapting to the needs of high-rise buildings, industrial, and municipal water supply.

Intelligent remote control: Some models support PLC or APP monitoring, allowing real-time viewing of pump status and alarm information. Typical Application Scenarios

High-rise building pressurization: Constant pressure water supply for top floors and all floors of residential and office buildings.

Industrial and municipal water supply: Pressurization for factory workshops, circulating water systems, and fire fighting water systems.

Cooling and air conditioning systems: HVAC circulating water pumps, ensuring stable operation of cooling/heating systems.

Smart building management: Supports PLC or BMS systems for centralized monitoring and energy-saving management.

Core Parameter Reference
Parameter Common Range Description
Pump Type Single-stage/Multi-stage centrifugal pump Multi-stage pumps can achieve higher head.
Rated Power 0.75 kW - 30 kW Different power options for home/commercial/industrial use.

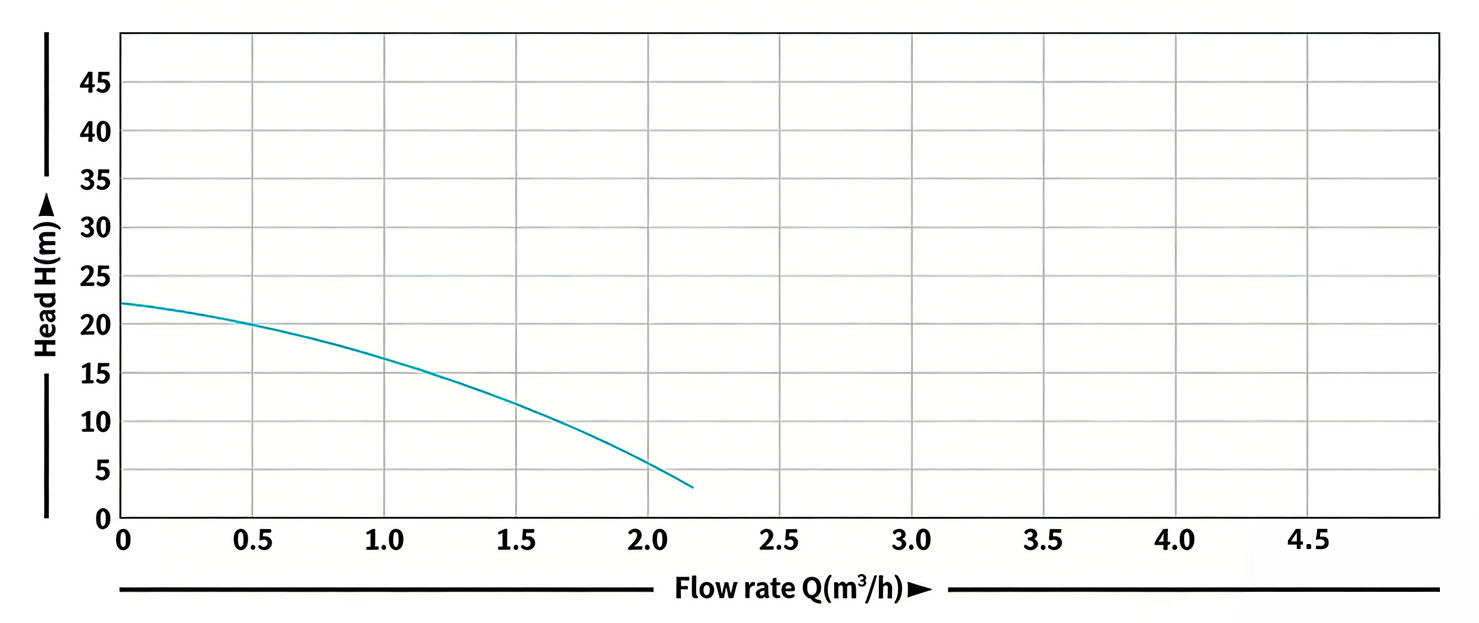

Maximum Head 10m - 120m Determines the maximum water supply height or pipeline pressure.
Maximum Flow Rate 10 L/min - 200 L/min Determines the simultaneous water supply capacity.
Noise Level ≤50 dB(A) High-quality pumps are usually below 45 decibels.
Control Method Frequency converter/PLC Automatically adjusts pump speed for energy saving and constant pressure.

Purchasing and Usage Suggestions

Look for intelligent variable frequency control:
While fixed-speed centrifugal pumps are cheaper, frequent starts and stops lead to shorter lifespan and higher operating noise.

Pay attention to protection functions:
Dry-running, overload, and overheating protection are crucial for ensuring stable pump operation.

Installation Suggestions:

Install a filter screen at the water inlet to prevent particles from damaging the impeller.

For large systems, multiple pumps can be connected in parallel to ensure peak water demand.

Using a pressure tank can further smooth pipeline pressure fluctuations.
