WQ-S Industrial Stainless Steel Submersible Sewage Pump

Industrial stainless steel submersible sewage pumps are highly reliable submersible drainage equipment specifically designed for complex industrial wastewater conditions. They are primarily used for transporting industrial wastewater containing solid particles, long fibers, oil, and corrosive substances. This pump integrates a submersible motor and pump body, allowing for continuous operation underwater for extended periods, making it a core power component in industrial wastewater discharge systems.

1. Core Structure and Materials

The industrial stainless steel submersible sewage pump mainly consists of a stainless steel pump body assembly, a highly reliable sealing system, and a heavy-duty submersible motor.

Flow-through Component Materials
Flow-through components are typically made of 304, 316, or 316L stainless steel, either cast or welded. Specifically:

304 stainless steel is suitable for general industrial wastewater and weakly corrosive media.

316/316L stainless steel, due to its molybdenum content, has stronger resistance to pitting and chemical corrosion, making it suitable for chemical, pharmaceutical, seawater, and strong acid/alkali environments.

Impeller Structure Design
Common forms include single-channel, double-channel, helical, or double-blade structures. The spacious and smooth flow channels effectively handle large solid particles and long fiber impurities, significantly reducing the risk of clogging and ensuring continuous drainage capacity.

Sealing System
It adopts a double-face mechanical seal or a series mechanical seal structure. The sealing materials are mostly silicon carbide and hard alloy, combined with corrosion-resistant rubber O-rings, forming multiple protective barriers to effectively prevent sewage from entering the motor cavity.

2. Main Features

Corrosion and Wear Resistance
The all-stainless steel structure can withstand acid-base corrosion and abrasive particle erosion in industrial wastewater for extended periods.

Non-clogging, High Throughput
The optimized impeller and flow channel design are suitable for continuous transportation of wastewater with high impurity and fiber content.

Stable and Reliable Operation
The industrial-grade motor design supports long-term continuous operation, suitable for high-load conditions.

Safe and Convenient Maintenance
An optional automatic coupling installation system eliminates the need for personnel to enter the well during maintenance, reducing maintenance risks.

Multiple Protection Functions
It can be configured with leakage detection, overload, over-temperature, phase loss, and other protection devices to enhance system safety.

3. Application Areas

Industrial stainless steel submersible sewage pumps are widely used in:

Industrial wastewater systems: Wastewater discharge in chemical, pharmaceutical, paper, printing and dyeing, electroplating, food processing, and other industries.

Municipal engineering: Wastewater pumping stations in industrial parks, influent and return systems of sewage treatment plants.

Construction and infrastructure: Underground factories, equipment pits, and sewage lifting in industrial buildings.

Special working conditions: Pumping of complex wastewater containing corrosive liquids, solid particles, or oil.

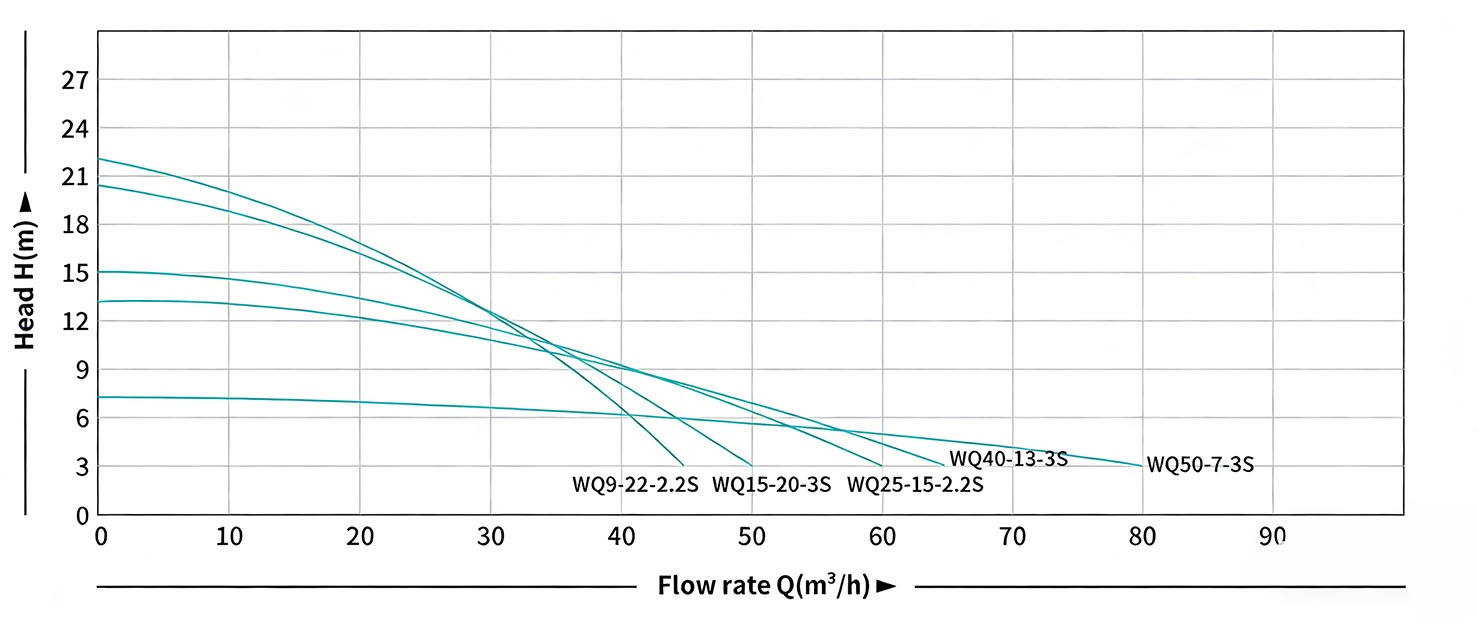

4. Main Technical Parameter Range

Flow rate: 5 – 2000 m³/h

Head: 5 – 80 m

Power: 0.75 – 250 kW

Diameter: DN25 – DN500

Medium temperature: ≤ 60℃ – 80℃ (higher with special design)

Medium pH value:

304 material: 4 – 10

316 / 316L material: 2 – 13

5. Selection Suggestions

When selecting an industrial stainless steel submersible sewage pump, it is recommended to focus on the following factors:

Medium properties: Corrosiveness, size of solid particles, and fiber content

Operating parameters: Required flow rate, head, and continuous operating time

Material grade: Reasonably select 304 or 316L according to the medium composition

Installation method: Fixed coupling installation or mobile use

With their high corrosion resistance, strong sewage discharge capacity, and long-term operational stability, industrial stainless steel submersible sewage pumps are gradually replacing traditional cast iron sewage pumps, becoming the solution for complex industrial wastewater treatment.
