Smart Variable Frequency Permanent Magnet Booster Pump

The intelligent variable-frequency permanent magnet booster pump is a "cutting-edge technology" in the field of modern fluid transportation, perfectly integrating permanent magnet motor technology, variable frequency control, and intelligent management. Simply put, it adds a "smart brain" and "energy-saving capabilities" to traditional booster pumps, like upgrading "old-fashioned appliances" to "smart home devices." It excels particularly in energy saving, quiet operation, and constant pressure water supply, effectively solving the problem of unstable water pressure.

Core Technology and Working Principle

The core advantage of this pump comes from the combination of three technologies:

Permanent Magnet Synchronous Motor (Core Power)

Principle: Utilizes high-performance rare-earth permanent magnets as the rotor, combined with the rotating magnetic field generated by the energized stator coils, to achieve high-efficiency rotation.

Advantages: No carbon brushes, reduced mechanical friction, high motor efficiency (typically reaching IE4 or IE5 levels), compact size, and long lifespan (up to 10 years or more).

Intelligent Variable Frequency Control (Smart Brain)

Principle: Built-in microcomputer chip (MCU) and pressure sensor monitor water pressure and flow rate in real time.

Operating Modes: Automatically adjusts the rotation speed according to water demand, ensuring precise water supply.

Low flow (e.g., washing hands): Low-speed operation, energy-saving and quiet.

High flow (e.g., showering): High-speed operation, ensuring sufficient water pressure.

Constant pressure water supply: Automatically adjusts the pressure, ensuring stable output regardless of inlet pressure fluctuations.

Fully Enclosed and Silent Design

The brushless motor reduces noise, combined with an optimized hydraulic model and vibration damping structure, resulting in operating noise as low as approximately 40 decibels (as quiet as a library).

Main Features

Extreme Energy Saving: Compared to traditional AC pumps, it saves 30%-50% energy, consuming energy only when needed.

Ultra-Quiet: No carbon brush friction, no whistling sound, suitable for installation in bedrooms, kitchens, or cabinets.

Compact Size: The high-efficiency motor design makes the pump body smaller, allowing for flexible installation and saving space.

Safe and Durable: Equipped with multiple safety features including water shortage protection, overheating protection, overload protection, and anti-freeze protection.

Wide Voltage Adaptation: Some models support 180V-270V wide voltage startup, ensuring stable operation even in areas with unstable voltage.

Typical Application Scenarios

Whole-house intelligent boosting: Boosting water pressure for villas, self-built houses, and top floors of high-rise buildings. Water Heater Companion: Solves problems of low water pressure causing gas water heaters to fail to ignite or resulting in inconsistent hot and cold water during showering.

Water Purification/Softening System: Provides stable pressure for RO water purifiers or water softeners.

Smart Home Integration: High-end models support WiFi control, allowing monitoring of water pressure, parameter settings, and receiving alarms via a mobile app.

Core Parameter Reference
Parameter Common Range Description
Motor Type Permanent Magnet Synchronous/Brushless DC Look for "Permanent Magnet" and "Brushless" labels
Rated Power 100W - 500W 200-300W is generally sufficient for home use

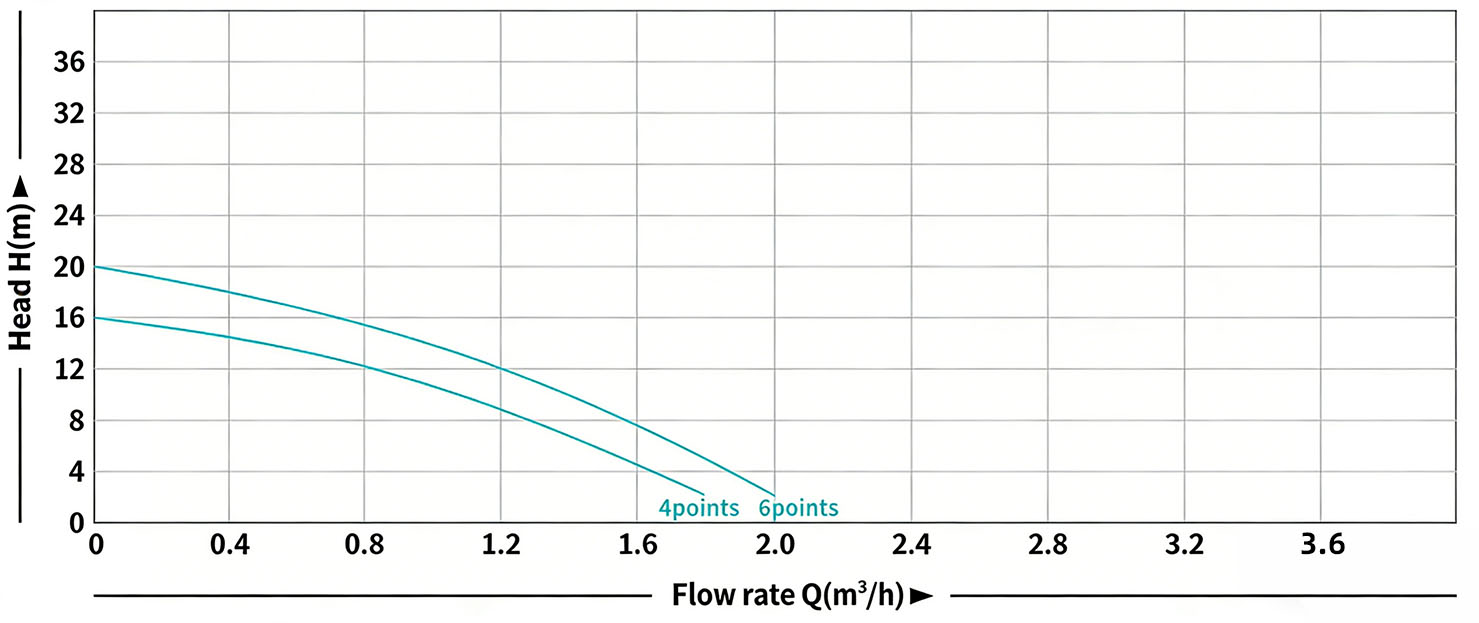

Maximum Head 15m - 50m Determines how high the water can be lifted or the distance it can be transported
Maximum Flow Rate 20 L/min - 50 L/min Determines how many faucets can be opened simultaneously while maintaining constant pressure
Noise Level ≤45 dB(A) The lower the better; high-quality pumps are usually around 40 decibels

Purchase and Usage Suggestions

Look for "Permanent Magnet Variable Frequency":
Avoid brushed DC pumps, as they have a short lifespan and are prone to electromagnetic interference.

Pay attention to dry-running protection:
Smart pumps have an automatic shutdown function when there is a lack of water, preventing pump burnout.

Installation Notes:

It is recommended to install a filter screen at the water inlet to prevent sand and gravel from damaging the impeller.

If you are concerned about power outages, a bypass valve can be installed to allow for manual water supply during power failures.
