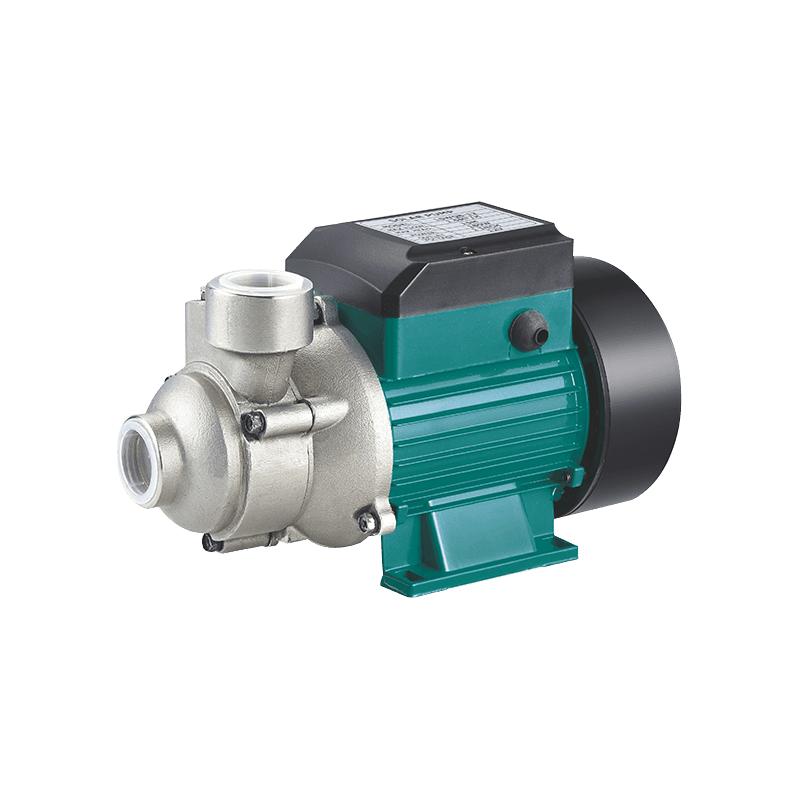

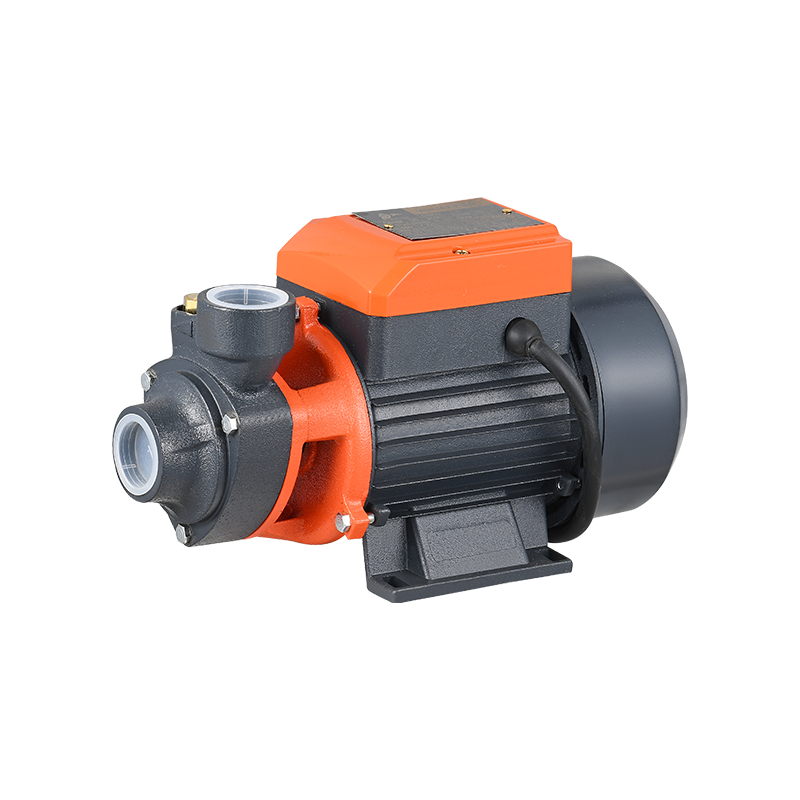

LSQB Brass Impeller Solar Brushless Pump

LSQB Model Meaning: Typically represents a combination of "Vertical/Centrifugal (L), Clean Water (S), Submersible/Self-priming (Q), and Brushless DC (B)".

Core Form: A compact brushless DC water pump.
Working Method: It is usually installed on the ground (or floats on the water surface) and does not need to be lowered to the bottom of the water like a deep well pump. It uses self-priming or submersible methods to draw water from nearby and pressurize and deliver it.
Core Working Principle: Brushless motor + Centrifugal/Vortex
The core of the LSQB series is the brushless DC motor:
Photoelectric Drive: Directly powered by solar panels, no inverter required (some models are compatible with mains power).
Electronic Commutation: No carbon brushes, the motor rotation is driven by an electronic controller, therefore it has a very long lifespan and no risk of sparks.
Hydraulic Model: The LSQB series usually adopts a vortex or single-stage centrifugal structure.
Vortex Type Features: Under the same volume, it can provide a higher head (pressure) than ordinary centrifugal pumps, but the flow rate is relatively small. It is very suitable for scenarios requiring "pumping water over long distances" or "to high-rise buildings".
Core Features: Compact, intelligent, maintenance-free

Features Detailed Description
Brushless DC Technology Long lifespan: No carbon brush wear, maintenance-free, waterproof and rust-proof. High efficiency: More energy-efficient than traditional brushed motors, with high starting torque.
Multifunctional Installation Can be used as a submersible pump or on land. It can be submerged in water as a submersible pump (requires waterproof cable), or placed on the ground as a self-priming pump (requires priming).
High Head Design Although it is a small pump, thanks to the vortex structure, it can generate high pressure (e.g., 22 meters head), sufficient for water supply to 2-3 story buildings or long-distance irrigation.
Intelligent Protection Equipped with overheat protection and overload protection. Some high-end models have an MPPT controller, which can automatically find the optimal power generation point of the solar panel.

Typical Application Scenarios
The LSQB series is a powerful assistant for homes and small-scale agriculture:
Home Solar Water Supply:
Installed on the roof or in the yard, it uses solar energy to pump water from a water tower or underground well to a higher location for household washing and toilet use.
Balcony/Garden Irrigation:
Used with drip irrigation systems or spray guns to water balcony flower pots and small vegetable gardens. Its small size makes it very portable.
Water Circulation and Fountains:
Used for fish pond water circulation, rock garden fountains, and landscape water treatment.
Car/Equipment Cleaning:
Used as a portable high-pressure washing pump.

Selection and Usage Recommendations
Suction Head Limitation (Key):
As a surface pump, its ability to draw groundwater from the ground is limited (suction head is usually within 5-8 meters). If the well is too deep, a deep well pump (such as the 3LSS series) is recommended.
Water Quality Requirements:
Although durable, the LSQB is typically a clean water pump. If the water contains too much sediment, it will accelerate the wear of the internal ceramic shaft and impeller.  It is recommended to install a filter screen at the water inlet.
Inlet and Outlet Ports:
Its interfaces are usually small (e.g., 4-point or 6-point pipe threads). Pay attention to matching the water pipe size during installation.

The LSQB series is like the "light cavalry" of the solar water pump family. It's not as "deeply hidden" as a deep well pump, nor as "imposing" as a high-power industrial pump. If you simply want to water your yard or pump water from a pond to a rooftop water tank, the LSQB series is the best choice due to its affordable price, simple installation, and maintenance-free operation.
