Motorized Submersible Sewage Pump

Submersible sewage pumps are a type of sewage discharge equipment that integrates the electric motor and pump body, operating entirely submerged in liquid. They are specifically designed for transporting sewage media containing solid particles, fibers, sludge, and certain corrosive substances. Compared to ordinary drainage pumps, they feature targeted enhancements in motor protection, sealing structure, and flow capacity, making them a core power device in municipal, industrial, and building sewage systems. These pumps operate underwater, avoiding suction lift limitations and cavitation problems, and possess characteristics such as stable operation, strong sewage discharge capacity, and a wide range of applicable working conditions.

Submersible sewage pumps are a type of sewage discharge equipment that integrates the electric motor and pump body, operating entirely submerged in liquid. They are specifically designed for transporting sewage media containing solid particles, fibers, sludge, and certain corrosive substances. Compared to ordinary drainage pumps, they feature targeted enhancements in motor protection, sealing structure, and flow capacity, making them a core power device in municipal, industrial, and building sewage systems.

These pumps operate underwater, avoiding suction lift limitations and cavitation problems, and possess characteristics such as stable operation, strong sewage discharge capacity, and a wide range of applicable working conditions.

Core Structural Components

Submersible sewage pumps typically consist of the following key parts:

Submersible Electric Motor
As the power core, it usually adopts an oil-filled or dry-type structure, possessing good heat dissipation performance and insulation level, suitable for long-term underwater operation.

Pump Body and Flow Components
Including the pump casing, impeller, shaft, etc., the flow components are mostly made of wear-resistant cast iron or stainless steel to enhance corrosion resistance and wear resistance.

Impeller Structure
Common types include single-channel, double-channel, vortex, or cutting impellers. The wide flow channels allow for the smooth passage of larger solid particles and long fibrous impurities, providing excellent anti-clogging performance.

Sealing System
Adopts a double-face mechanical seal or tandem mechanical seal structure, effectively preventing sewage from entering the motor cavity, and is a key component in ensuring the motor's lifespan.

Cables and Protection Devices
Equipped with waterproof cables, it can be connected to an external control cabinet to provide multiple protections such as overload, phase loss, and leakage protection.

Main Features and Advantages

Strong sewage discharge capacity, not easily clogged
Specialized sewage impeller design allows for the transportation of complex media containing solids, fibers, and impurities. High Motor Protection Rating
The motor is completely sealed, typically achieving an IP68 rating, suitable for long-term submersible operation.

Stable Operation and Low Noise
The underwater operation effectively reduces vibration and noise, resulting in smoother and more reliable operation.

Flexible Installation Methods
It can be installed using a fixed automatic coupling or a mobile hose connection, facilitating maintenance and replacement.

Typical Application Areas

Municipal Engineering: Sewage treatment plants, rainwater pumping stations, urban drainage systems

Industrial Wastewater Treatment: Factory wastewater, chemical sewage, production waste liquid discharge

Construction: Basements, civil defense projects, sewage lifting wells

Agriculture and Aquaculture: Wastewater and sludge discharge from farms and aquaculture facilities

Selection and Usage Recommendations

Clearly define the media composition and select the appropriate impeller type and material.

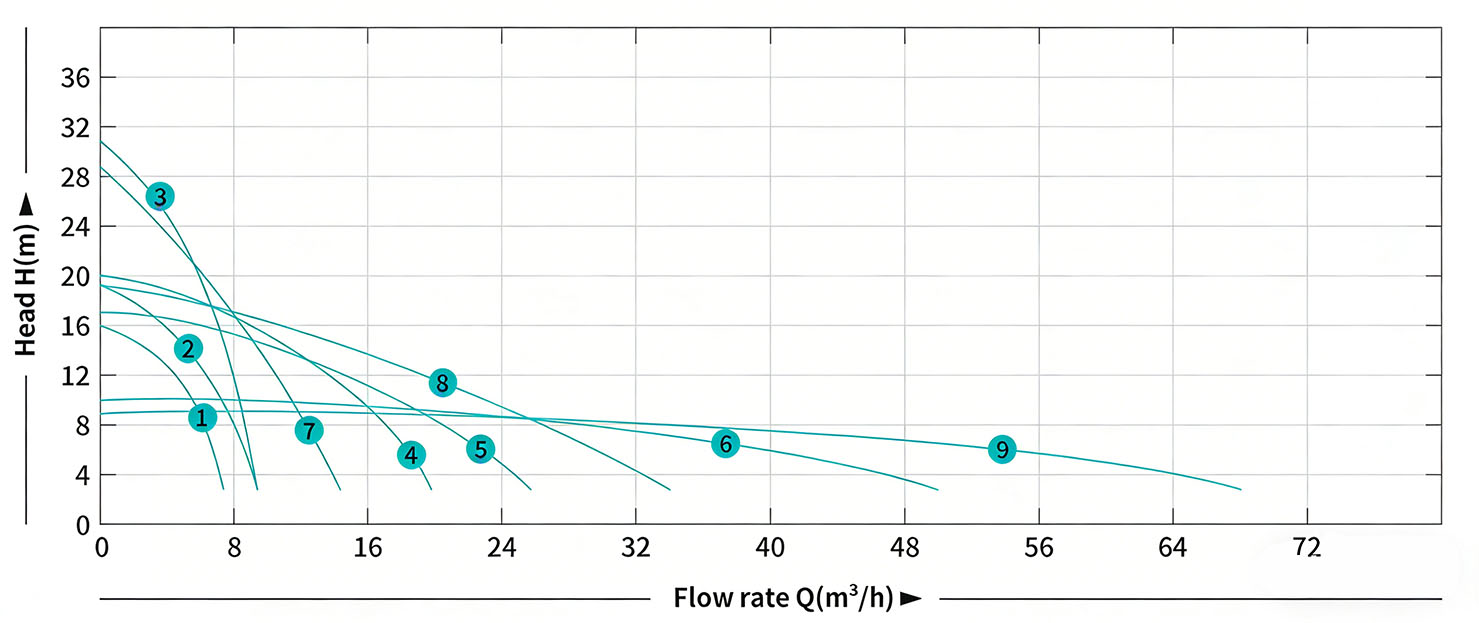

Select the appropriate model based on actual flow rate and head requirements to avoid long-term overload operation.

It is recommended to configure a control cabinet and protection devices to improve operational safety.

Regularly check the seals and cables to ensure long-term reliable operation.

With its powerful sewage discharge capacity, reliable motor protection structure, and stable underwater operation characteristics, the submersible sewage pump has become an indispensable key equipment in modern municipal, industrial, and building drainage systems, especially suitable for complex and harsh sewage working conditions.
